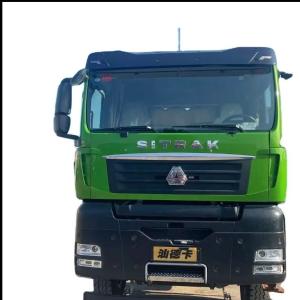

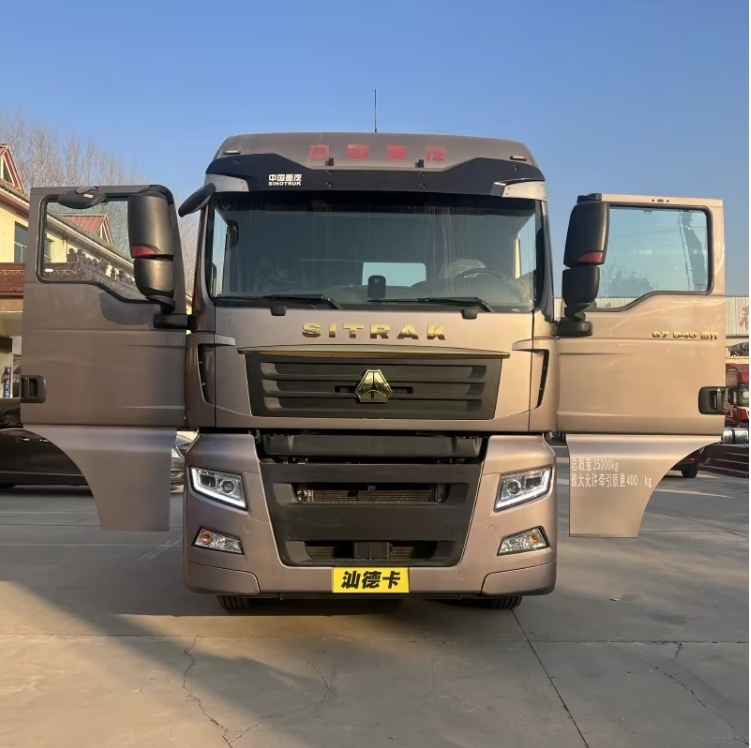

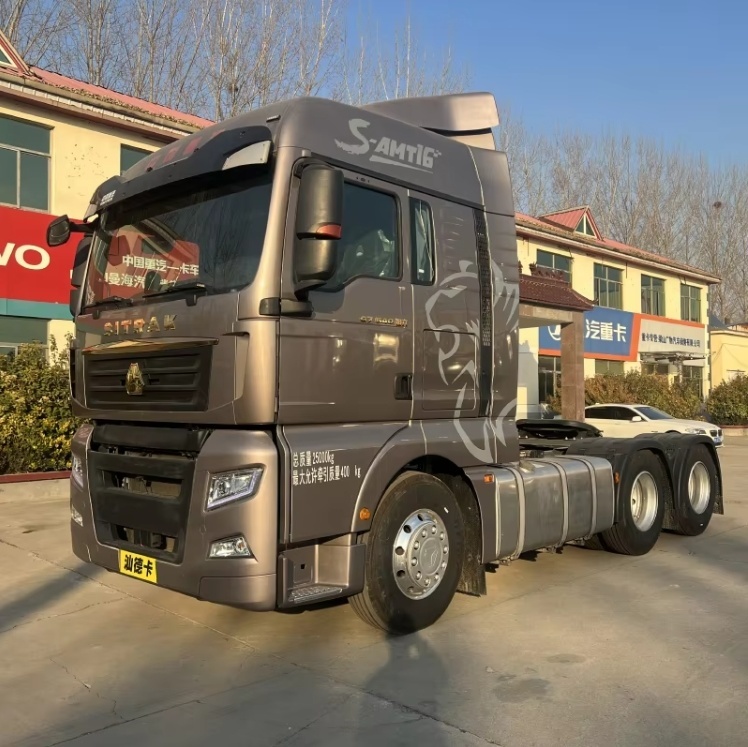

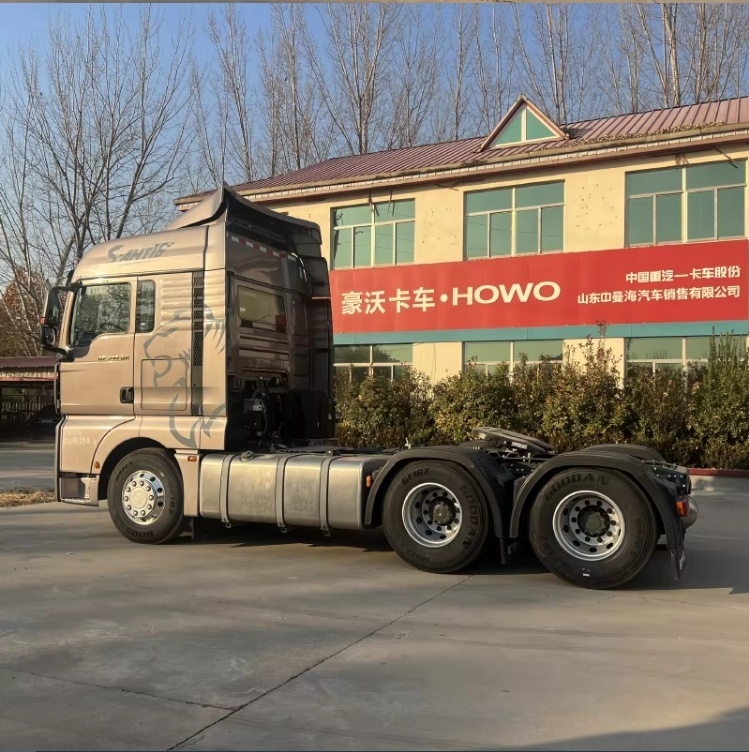

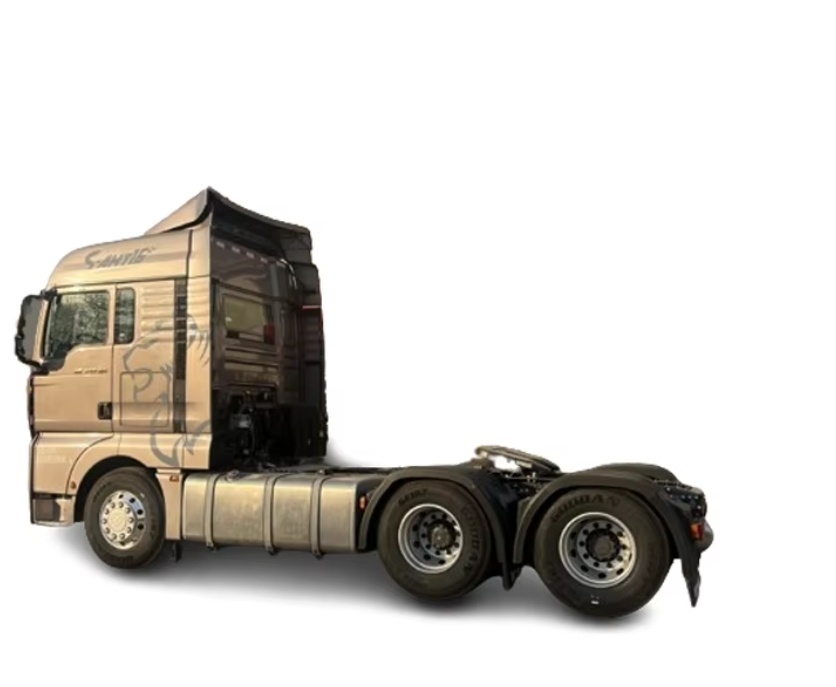

| Product Name | SINOTRUK New Model Man Technology SITRAK C7H 6X4 430hp Tractor Truck |
| Driving Type | LHD (RHD is optional) |
| Cabin | C7G |
| Engine | MC11.43-30 430HP Euro 3 |
| Transmission | ZF16S2230TO for 440/430PS
16 speed manual control aluminum
synchronizer Gearbox.
Ratios:1-13.80,2-11.54,3-9.49,4-7.93,5-6.53,6-5.46,7-4.57,8-3.82,9-3.02,10-2.53,11-2.08,12-1.74,13-1.43,14-1.20,15-1.00,16-0.84,R1-12.92,R2-10.80 |
| Steering | ZF power steering, modol ZF8118, hydraulic steering with power assitance |
| Front Axle | HF9,1x9000 KGS
Steering with doubleT-cross section beam |
| Rear Axle | HC16, 2x16000 KGSPressed axle housing, central single reduction with hub reduction,with differential locks between wheels and
axles. |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Chassis | Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Tyres | 315/80R22.5, tubeless tyres with one spare tyre |
| Fuel Tank | 600L |

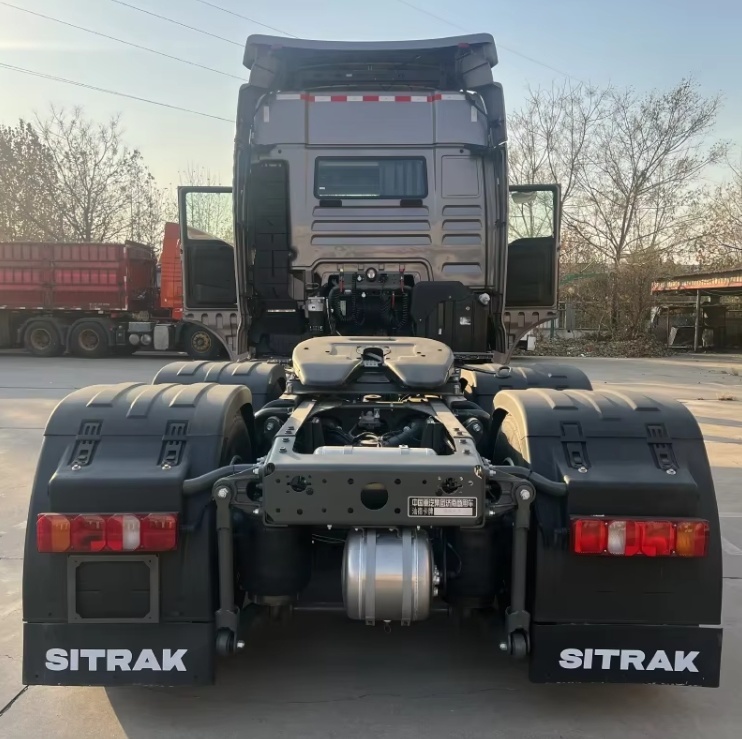

| Fifth Wheel | 90# or 50 # |
| Overall Dimension | 6800x2500x3400 |
